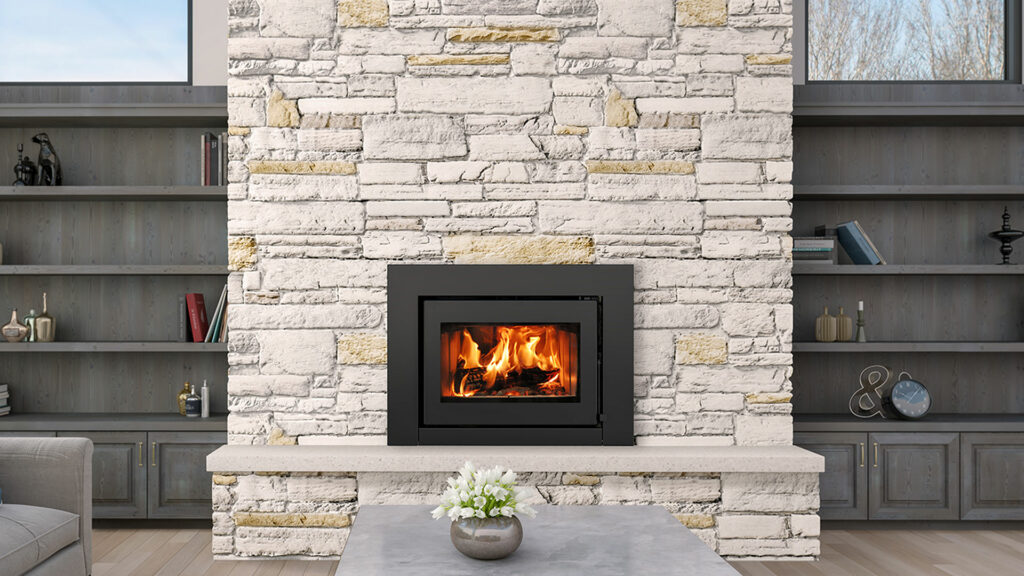

Introducing new chapter for the RSF brand. The Focus 3600i is the very first fireplace insert developed by RSF. Its quality contruction, low emissions, and high efficiency embody over 30 years of quality fireplace contruction and experience.
- Clean, modern styling
- Easy to intall
- Certified to NSPS 2020 at 1.49 g/hr
- Detachable flue collar with pull handle
- Optional heat activated internal blower
- Optional oversized backing plate (42” 30”)
2.1 cu ft
Based on overall firebox dimensions, EPA firebox volume per certificationtesting is 1.6 cubic feet.
Firewood Lenth EPA tested with 12″ & 16″ logs, can accept up to 18″ logs Glass Viewing Area 241 in220 ½” W x 11 ¾” H EPA Certification 1.49g/h BTU Output
44,135 BTU/h
Based on EPA certificationtesting using cordwood and calculations from CSA B415.1-10
BTU Maximum50,000 BTU/h
Based on engineering calculations using firebox volume, efficiency, loading density (12lb/cu ft for hardwood), average humidity, reloading interval, type of intallation, etc.
Heating Capacity800 to 1,500 ft2
Depends primarily on wood quality, ambient air temperature and building heat loss.
Optimal Efficiency79%
Low Heating Value (LHV) using CSA B415.1-10 calculations.
EPA Average Efficiency74%
High Heating Value (HHV) using CSA B415.1-10 calculations.
EPA Average CO1.29 g/min
Carbon Monoxide (CO), using data from EPA crib wood testing
Additional information
| Brand | RSF |
|---|---|
| Product Type | Insert |
| Fuel Type | Wood |
| Design Style | Contemporary |
